Introduction

AC seriesAC induction motor controller delivers smooth power to motor, and they provide unprecedented flexibility through programmer SG1810. Both SCI and CAN(optional) are provided, which allows these AC motor controllers to be part of an efficient distributed system. Inputs and outputs can be optimally shared throughout the system, minimizing wiring and creating integrated functions that reduce the cost of the system.

Features

controller are the ideal solution of traction,forklift and other motor drive and vehicle control needs. All controllers provide superior operator control of motor drive performance. Features include:

l  The world first class field-oriented motor control algorithms, high efficiency.

l  Advanced Pulse Width Modulation technology for efficient use of battery voltage, low motor harmonics, low torque ripple, and minimized switching losses.

l  Extremely wide torque/speed range including full regeneration capability

l  Smooth and accurate low speed control, including zero speed.

l  Adaptation of aviation level DSP from TI.

l  Real-time battery current, motor torque, and power estimates available.

l  wide range of I/O can be applied wherever needed.

l  Models avairable for 24V to 96V battery systems, with 180A RMS to 350A RMS 2-minute current ratings.

l  Easily programmable through SG1810 programmer.

l  CANopencommunication(29-bit extended identifier field) is optional, SCI interface communication is avairable at any time.

l  Field-programmable, with flash downloadable operating code, the firmware can be updated to the lastest version.

l  Thermal cutback, LED flash timers warning, and automatic shutdown provide protection to motor and controller.

l  Rugged sealed housing and connectors meet IP65 enviromentals sealing standard for use in harsh environments.

Familiarity with your SG controller will help install and operate it properly. We suggest you to read this manual carefully. If you have questions, please contact the shinegle office nearest you.

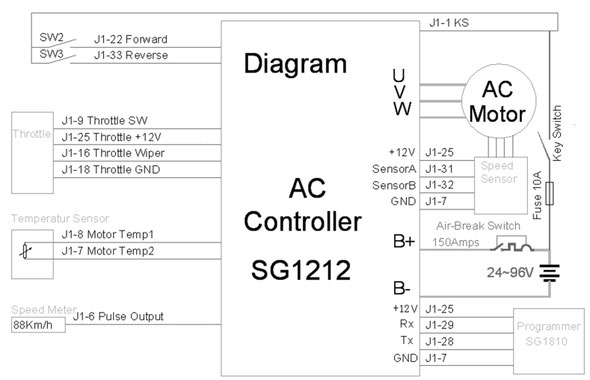

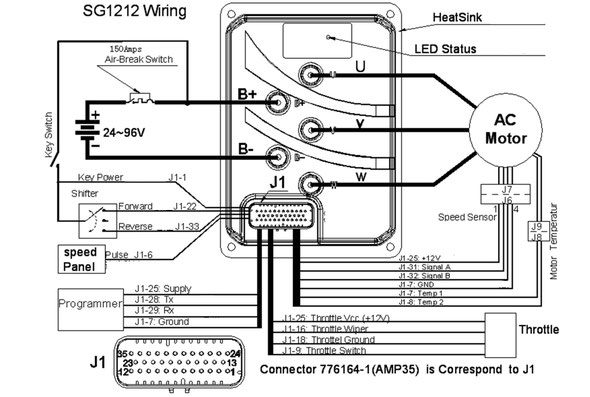

Using the SG1810 hand-held programmer, you can set up the controller perform all the basic operations—such as maximum speed, acceleration control, throttle offset, and HPD. We first show you how to wire your system.

Technical Parameter
